Planting trees in paved environments presents a fundamental engineering challenge. Urban trees require large volumes of uncompacted soil for healthy root development. At the same time, pavements must support loads from vehicles, pedestrians and surrounding infrastructure.
Without appropriate structural support systems:

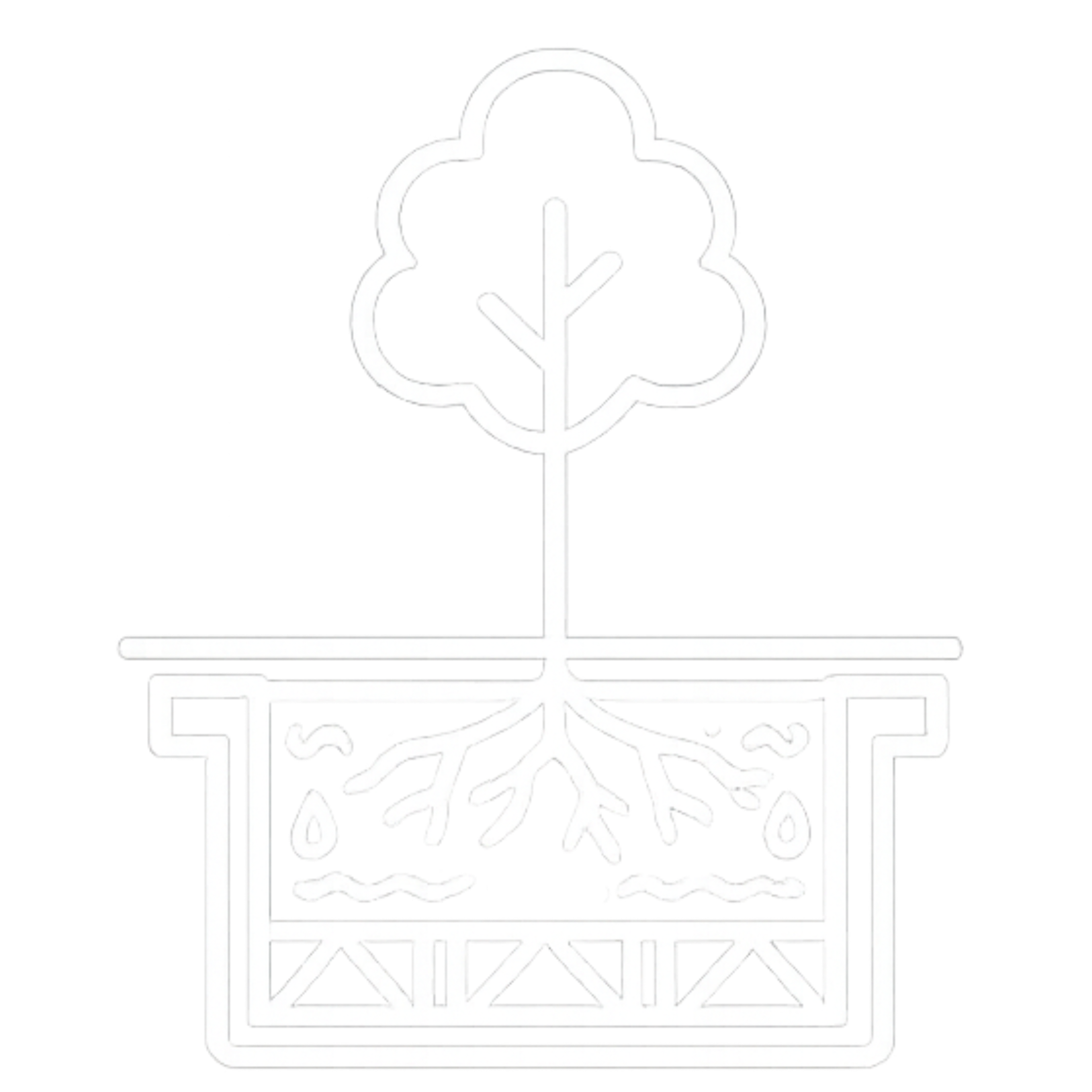

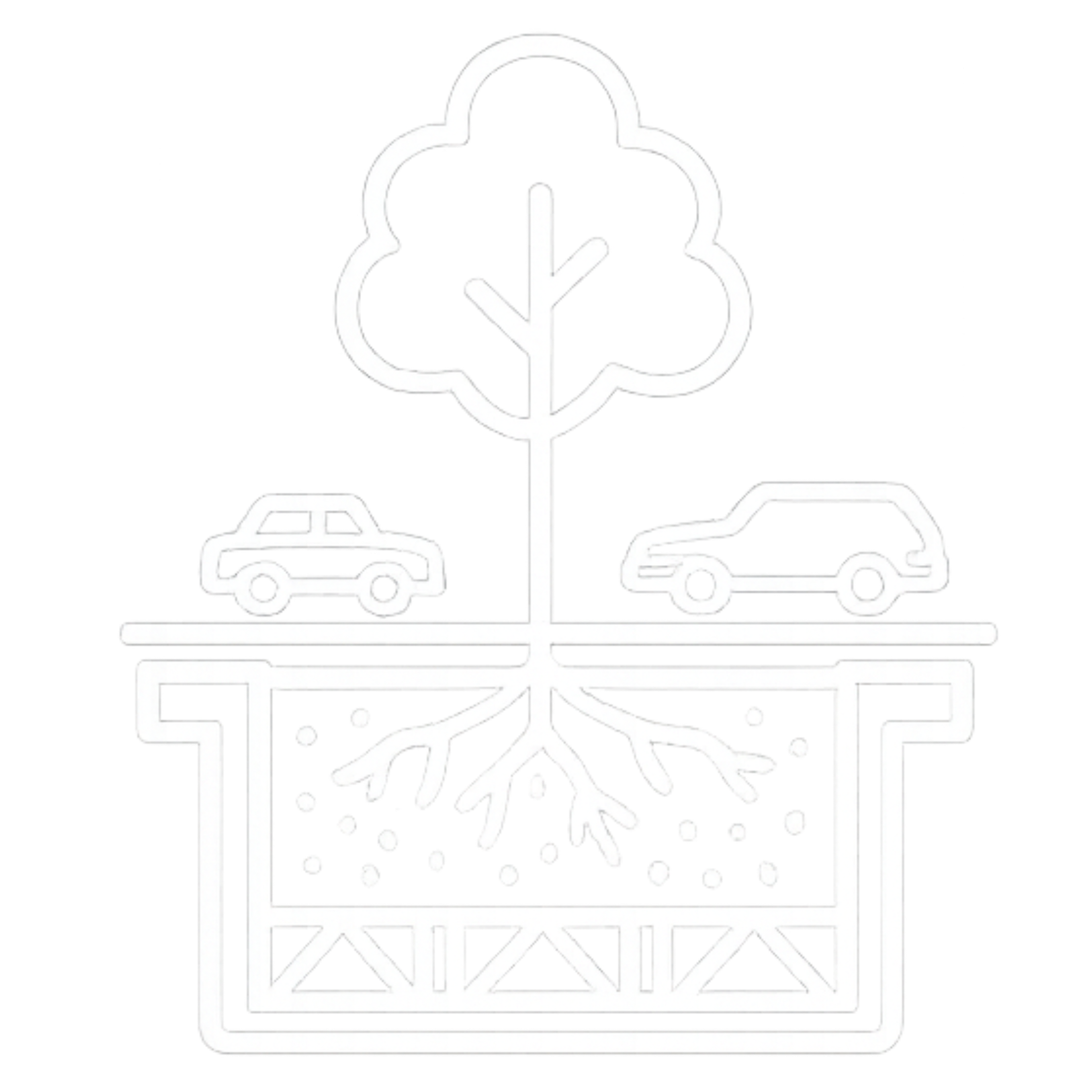

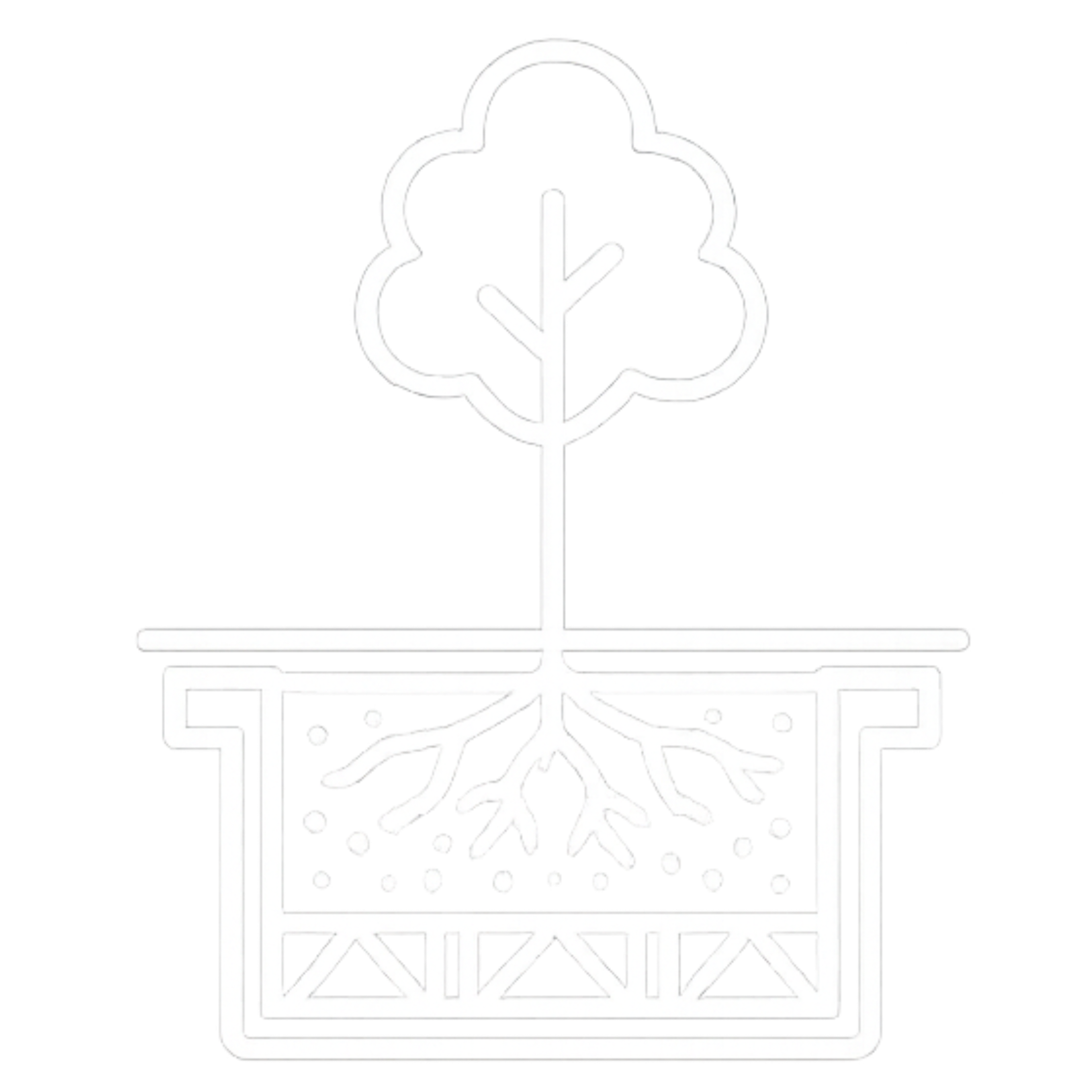

Soil cell systems create a load-bearing structural framework beneath pavements, allowing soil to remain uncompacted and available for root development.
This approach supports both the structural requirements of the pavement and the biological needs of the tree.
Increased rootable soil volume
Improved long-term tree health and canopy growth
Reduced pavement damage caused by root pressure
Compatibility with integrated drainage strategies
When correctly designed and installed, soil cell systems allow trees to establish, grow and mature within the constraints of the built environment.
GreenBlue Urban provides several structural soil cell systems used across a range of urban tree planting applications.

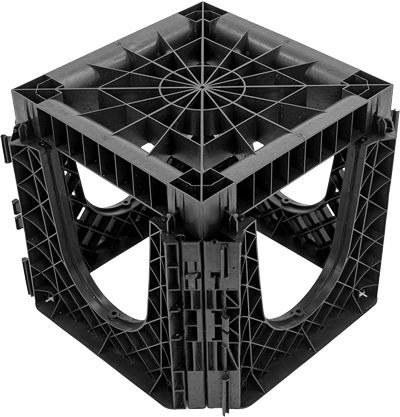

RootSpace creates large volumes of rootable soil beneath paved environments while supporting structural loads.
Maximum soil volume available for root growth
Flexible modular layouts around utilities and services
Efficient installation compatible with construction programmes
Manufactured from fully recycled material

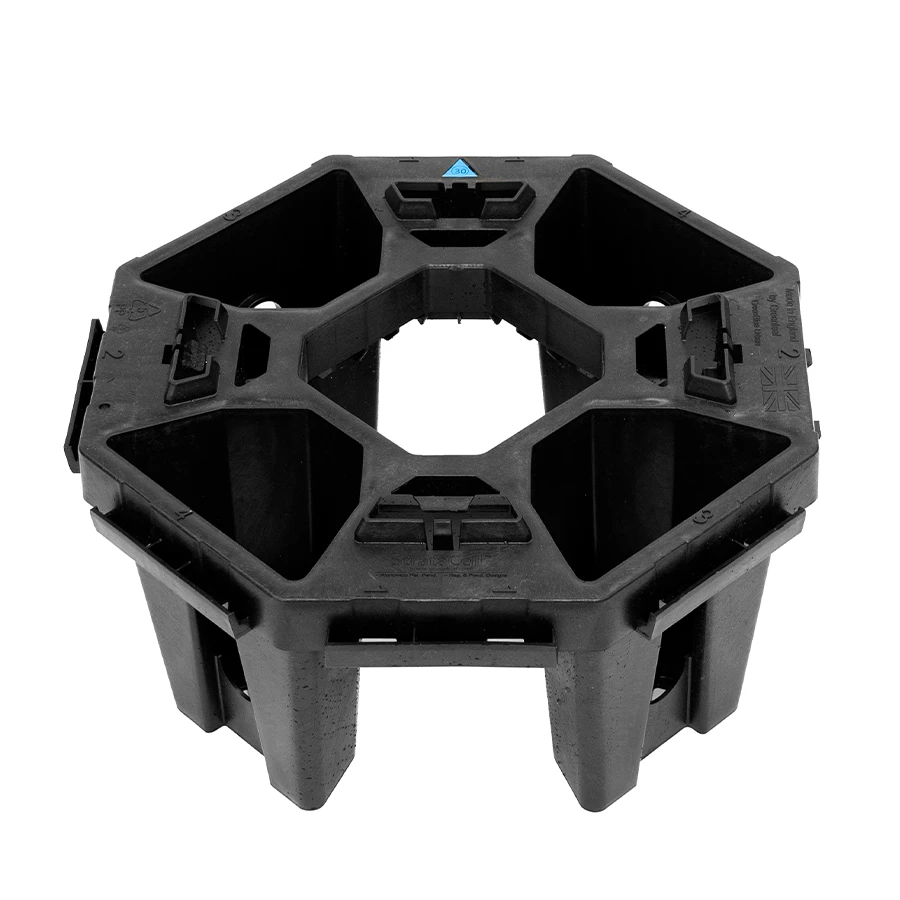

StrataCell provides structural soil support beneath paved surfaces while maintaining soil volumes for tree root development.
A solution suited to a wide range of streetscape applications
High load-bearing capacity for streets and the public realm
A modular layout for constrained or irregular tree pits
Rapid installation with tool-free click assembly

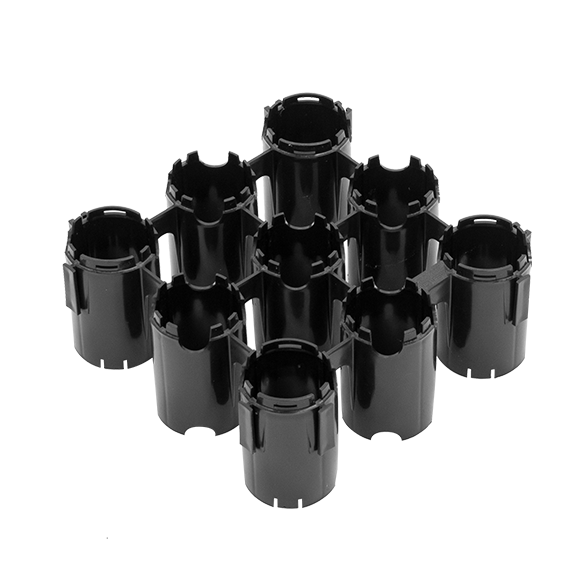

The original modular root chamber system introduced in 2001, with a proven track record in urban tree planting.
Stable underground structural support through interlocking units
Products manufactured from recycled polypropylene
Effective root development in constrained or limited spaces
A compact system for smaller planting schemes
Urban trees require significant soil volumes to achieve healthy growth and long-term canopydevelopment.
Soil cell systems allow these volumes to be created beneath paved environments withoutcompromising structural performance.
Early engagement during design and specification helps ensure systems are correctly sized and integrated within the wider landscape and drainage strategy.
GreenBlue Urban supports designers and engineers with:
• Soil volume calculations.
• Tree pit layout guidance.
• Integration with SuDS infrastructure.
• Coordination with utilities and paving construction.
Early collaboration reduces risk, avoids redesign and helps ensure the infrastructure performs as intended once installed.
GreenBlue Urban polypropylene systems are manufactured using 100% recycled material derived from post-industrial and post-consumer sources, transforming existing resources into durable urban infrastructure. By keeping valuable materials in use for longer, we support a more circular approach to construction while reducing waste and helping to strengthen UK recycling and manufacturing industries.
Designed for demanding public realm applications, these systems deliver the durability and performance required for long-term use. Selected products are also supported by independently verified Environmental Product Declarations (EPDs), providing transparent environmental data to support informed specification and responsible procurement.
This is infrastructure built on the principle that materials still have value long after their first use.
